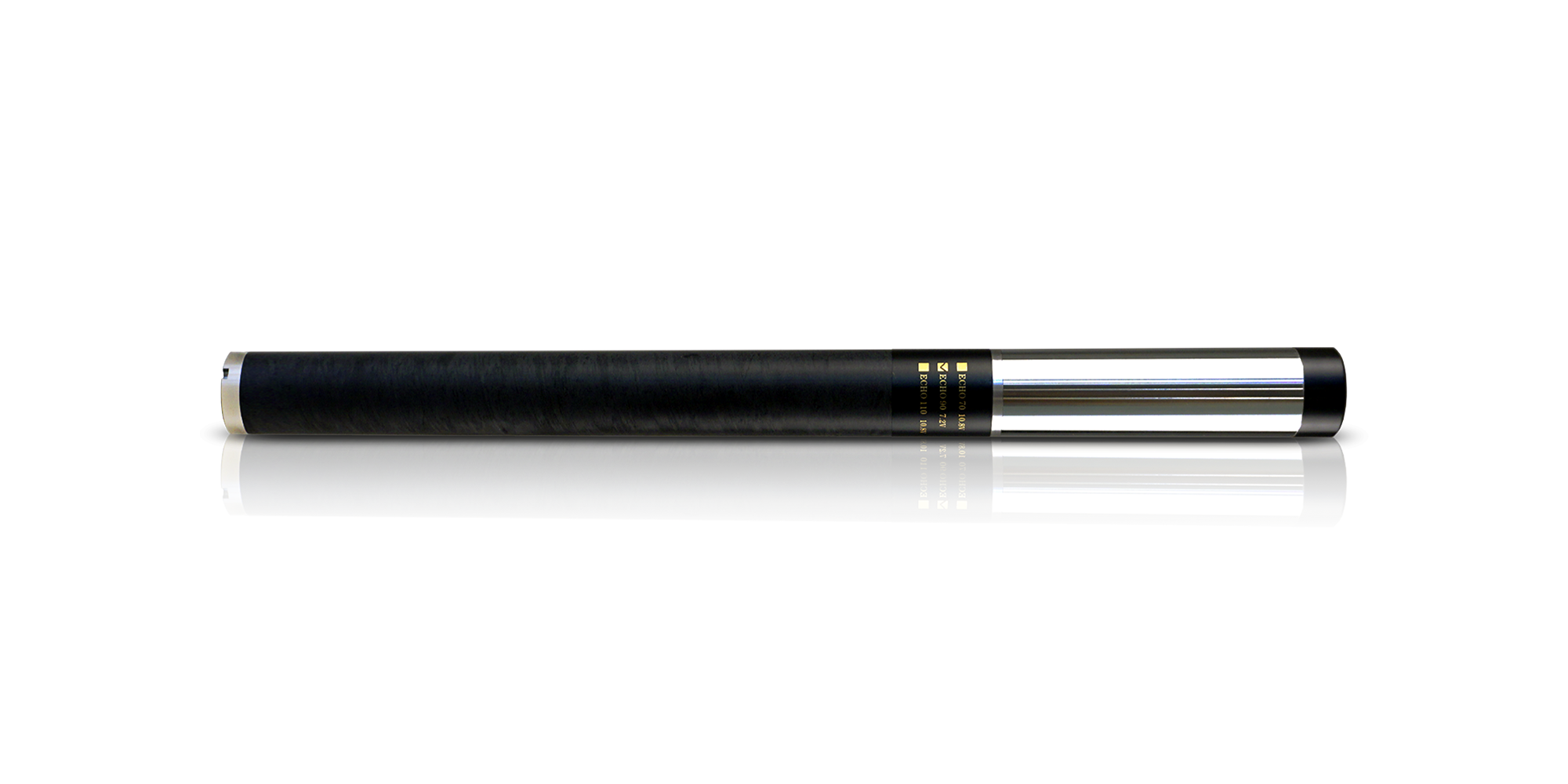

Echo 90 Transmitter

The Echo 90 is designed with extra power in mind for deep boring or heavy active interference. The Echo 90 requires a special size housing and slot configuration. The unique patented design with 12 frequencies and two power levels, offers a depth range of 200+ feet with a rechargeable lithium battery and life of up to 80 hrs. (18″ long x 1.42″ dia)

Starting at

$5,000

Specifications

System Frequency

12 Frequencies, 4kHz – 41kHz

Battery Type

18650 B2 x 2 Rechargeable Lithium Battery

Battery Life

20 Hours – High Power Mode, 80 Hours – Normal Mode

Depth & Data Range

230 ft (70m) – Normal Mode, 295 ft (90m) – High Power Mode

Pairing Transmitter to Receiver

Pairing your Echo Transmitter to UMAG Locator

Tracking on the Fly

Learn how Tracking on the Fly and Bore To can improve your drilling operation.
