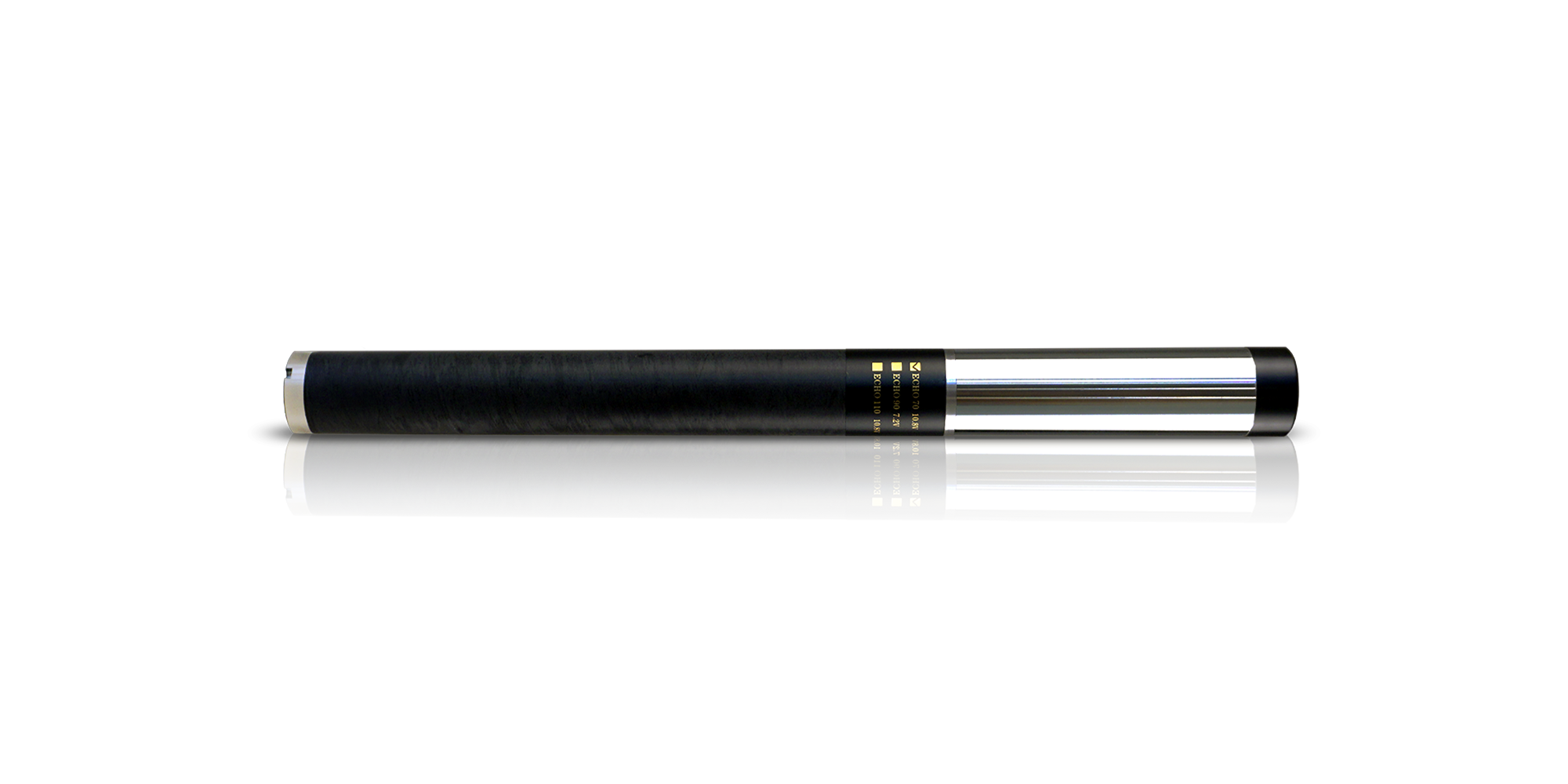

Echo 70 Transmitter
The Echo 70 is designed with extra power in mind for deep boring or heavy active interference but is still compact in size. The Echo 70 will fit in a standard Ditch Witch® housing with included adaptors. The unique patented design with 12 frequencies and two power levels, offers a depth range of 150+ feet with a rechargeable lithium battery and life of up to 60 hrs. (15.9″ long x 1.42″ dia)
Starting at
$4,500
Specifications
| Dimensions | 15.9 × 1.42 in |
|---|---|
| System Frequency | 12 Frequencies, 4kHz – 41kHz |
| Battery Type | 18650 x 3 Rechargeable Lithium Battery |
| Battery Life | 15 Hours – High Power Mode, 60 Hours – Normal Mode |
| Depth & Data Range | 164 ft (50m) – Normal Mode, 230 ft (70m) – High Power Mode |
