Mag X PRO + Nexus Pro Pack
The Perfect Pair
Equipped with the Mag X Pro HDD Locating System and the Nexus Pro Utility Locating System, you’ll be fully prepared to tackle any horizontal directional drilling project. This powerful package keeps you drilling longer and searching less. The Nexus Pro should be an essential device in every HDD contractor’s toolkit, boosting efficiency for potholing and ensuring safer, more reliable locates of critical utilities—keeping your team protected every step of the way.

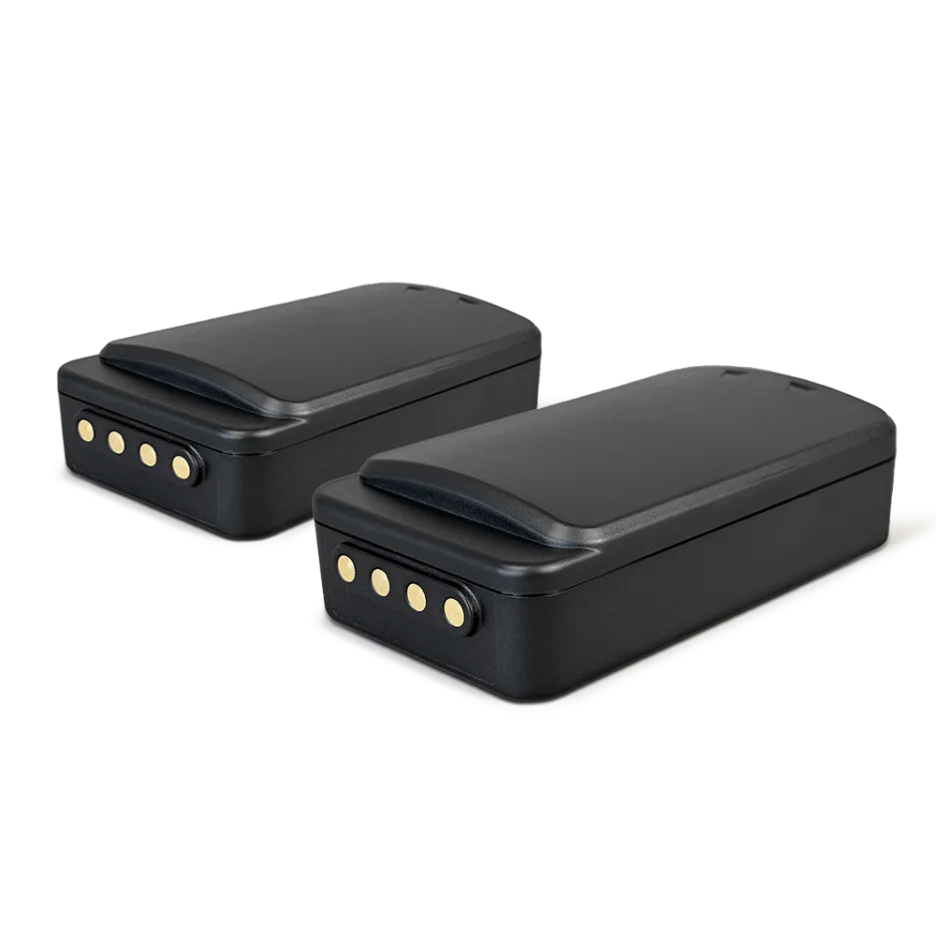

- Two Quick-Swappable Batteries
» Charge your spare battery while you locate - Ergonomic 3D Soft Touch Keypad
» Provide intuitive feedback with each button press - Comfortable Balanced Receiver
» Reduce fatigue with balanced ergonomic design - Break-Away Leads
» Reduce accidental damage to transmitter leads - Dual Output Ports
» Connect any two accessories
» Select the active accessory with a single button
Simplicity
Meets
Versatility
- Multi-Platform Versatility
» Showcasing 30 different feature sets - Directional Arrow Guidance
» Provide intuitive feedback with each button press - Enhanced Performance
» Reduce fatigue with balanced ergonomic design
Nexus Pro Dual Receiver
| Weight | 4.8 lbs |
|---|---|
| Dimensions | 26.7 × 5.8 × 12.7 in |
| Operating Temperature | -4°F to 122°F (-20° to 50°C) |
| Storage Temperature | -40°F to 160°F (-40° to 70°C) |
| Waterproof | IP65 |
| Battery Type | 6x AA (LR6) with Alkaline battery pack, Lithium ion battery pack, 35.5Wh |
| Battery Life | Alkaline: 5 hours continuous (10 intermittent), Lithium: 15 hours continuous (30 intermittent) |
| Charge Time | 2 hours |
| Frequency Range | 50Hz – 200kHz |
| Max Automatic Depth | 19.7 ft (6m) |
| Max Pushbutton Depth | 36 ft (11m) |
| Accuracy (Locate) | +/- 5% of depth |
| Accuracy (Depth) | Line: +/- 5% to 9.8ft (3m), Sonde: +/- 5% to 9.8ft (3m), Passive: +/- 10% to 9.8ft (3m) |
| Sensitivity | 1×10⁻¹⁵ Tesla (1uA @ 1m, 32.8kHz) |
| Automatic overload protection | Up to 60dB |
| Locate Modes | Single, Twin, Null, Sweep (Omnidirectional), Twin Sweep (Omnidirectional) |
| Gain Control | Manual with One Touch |
| Active Locate Frequencies | Standard Frequencies: 256Hz, 263Hz, 440Hz, 512Hz, 560Hz, 577Hz, 640Hz, 815Hz, 870Hz, 940Hz, 1.02kHz, 1.17kHz, 3.14kHz, 4.1kHz, 8.01kHz, 8.19kHz, 9.82kHz, 12.1kHz, 16.3kHz, 22.5kHz, 29.4kHz, 32.8kHz, 44.5kHz, 66.1kHz, 88.8kHz, 99kHz, 132kHz, 200kHz |
| Custom Frequencies | Available by request |
| Sonde Frequencies | 4 Frequencies: 512Hz, 640Hz, 8.19kHz, 32.8kHz |
| Passive Frequencies | Power |
| Locate Direction | Automatically detected, Any frequency up to 10kHz |
| Data Logging | 4Gb internal storage, over 16 million records |
| BLE 5.1 | BLE 5.1 |

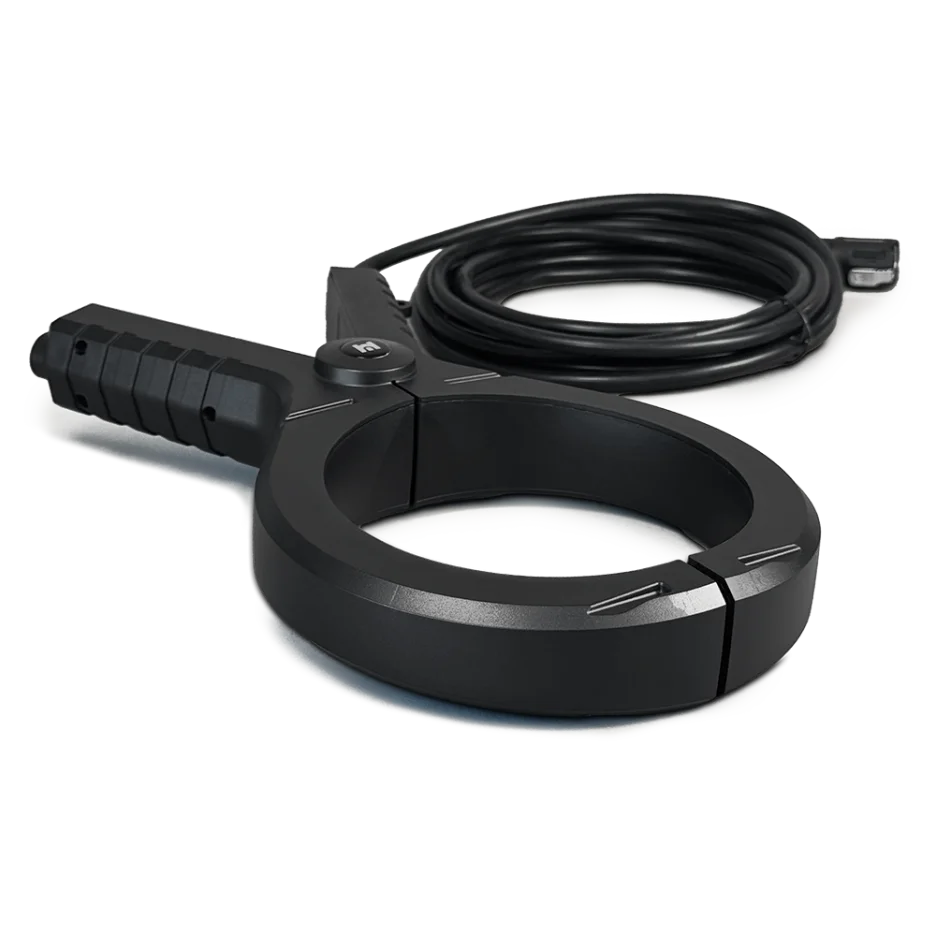

| Accessories | Ring Clamp |
Nexus 10w Transmitter
| Weight | 7.9 lbs |
|---|---|
| Dimensions | 8.3 × 7.6 × 15 in |
| Operating Temperature | -4°F to 122°F (-20° to 50°C) |
| Storage Temperature | -40°F to 160°F (-40° to 70°C) |
| Waterproof | IP65 |

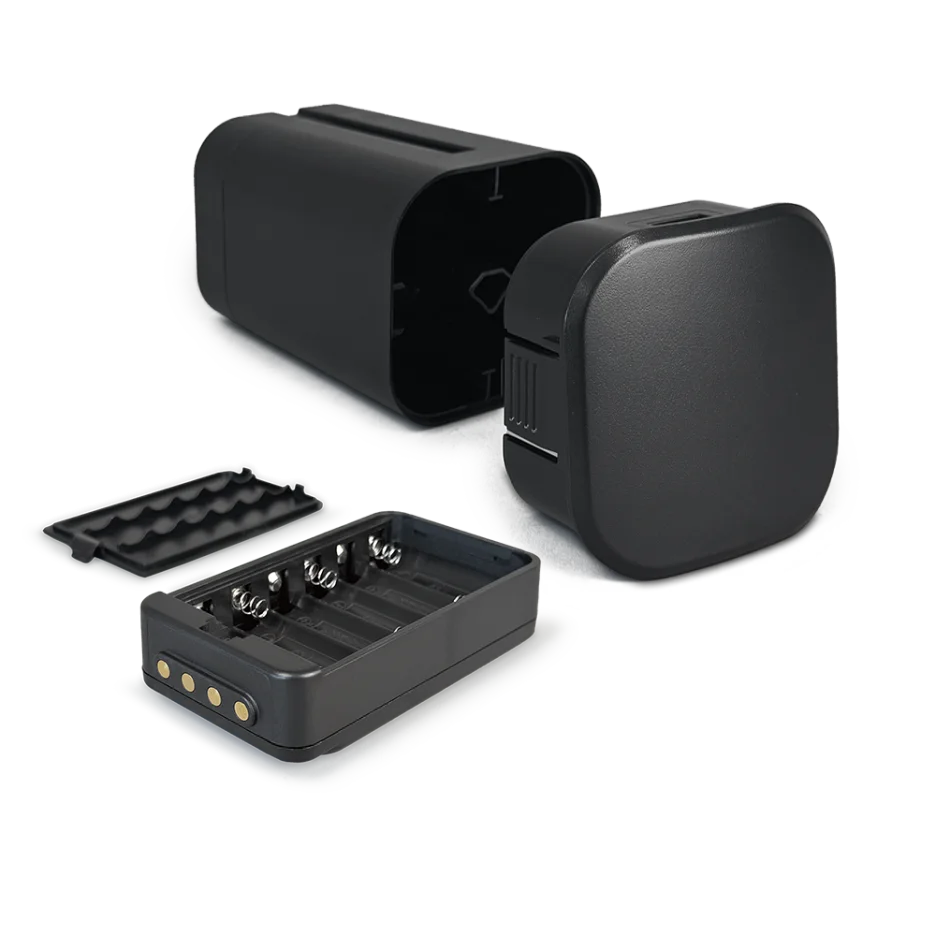

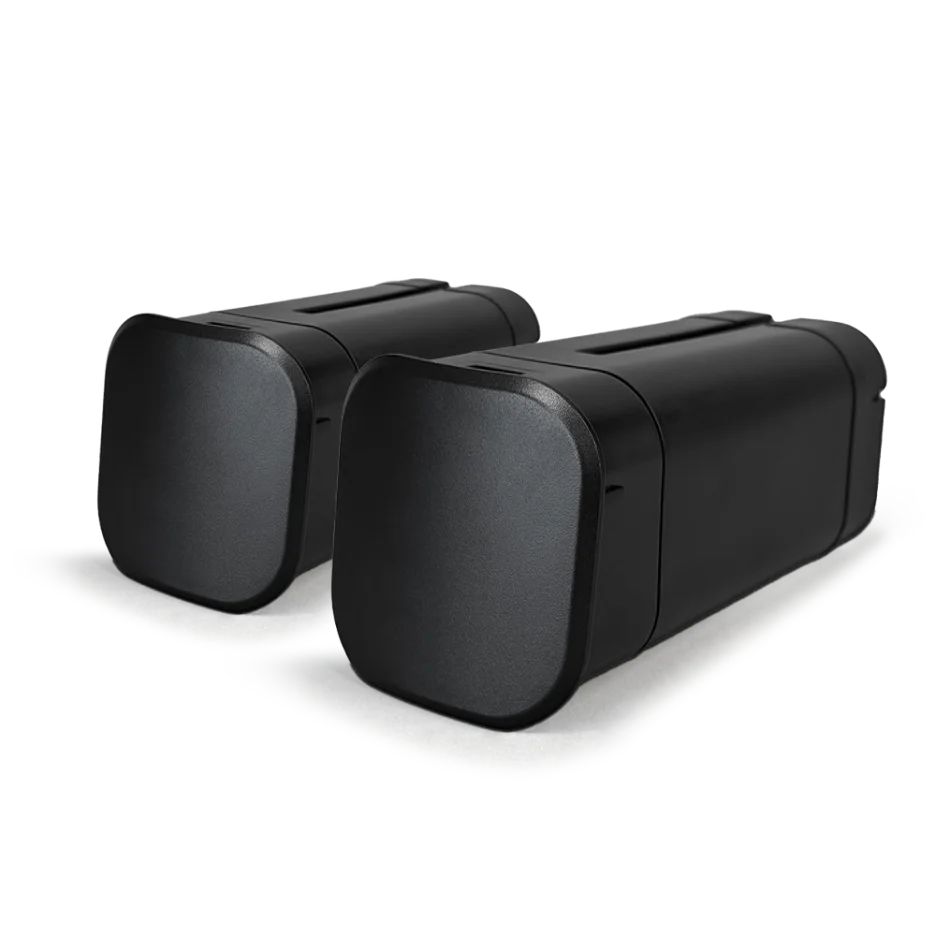

| Battery Type | Lithium ion battery pack, 94.7Wh | 8x D-Cell (LR20) with Alkaline Pack |
| Battery Life | Alkaline: 10 hours continuous (20 intermittent), Lithium: 17 hours continuous (34 intermittent) |
| Charge Time | 4 hours |
| Display | High Contrast Graphical LCD |
| Frequency Range | 256Hz – 200kHz |
| Max Power Output | 10w (1w above 45kHz) |
| Max Current Output | 1000mA (500mA above 45kHz) |
| Max Voltage Output | 90Vrms |
| Output Power Levels | 4 levels + Standby |
| Active Locate Frequencies | Standard Frequencies: 256Hz, 263Hz, 440Hz, 512Hz, 560Hz, 577Hz, 640Hz, 815Hz, 870Hz, 940Hz, 1.02kHz, 1.17kHz, 3.14kHz, 4.1kHz, 8.01kHz, 8.19kHz, 9.82kHz, 12.1kHz, 16.3kHz, 22.5kHz, 29.4kHz, 32.8kHz, 44.5kHz, 66.1kHz, 88.8kHz, 99kHz, 132kHz, 200kHz |
| Custom Frequencies | Available by request |
| Induction Frequencies | 3.14kHz and above |
| Dual Output Ports | Connect any two accessories, Select the active accessory with Mode key |
| Locate Direction | User enabled, Any frequency under 10kHz |

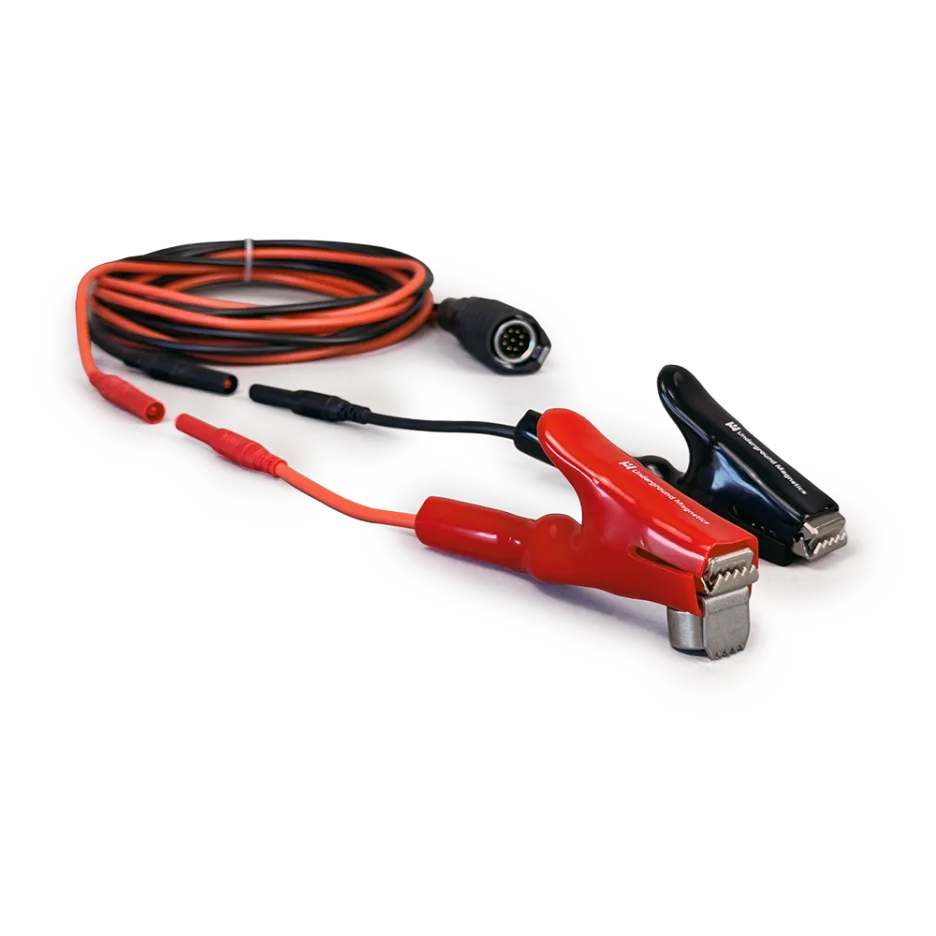

| Accessories | Direct Connect Leads, Ring Clamp |

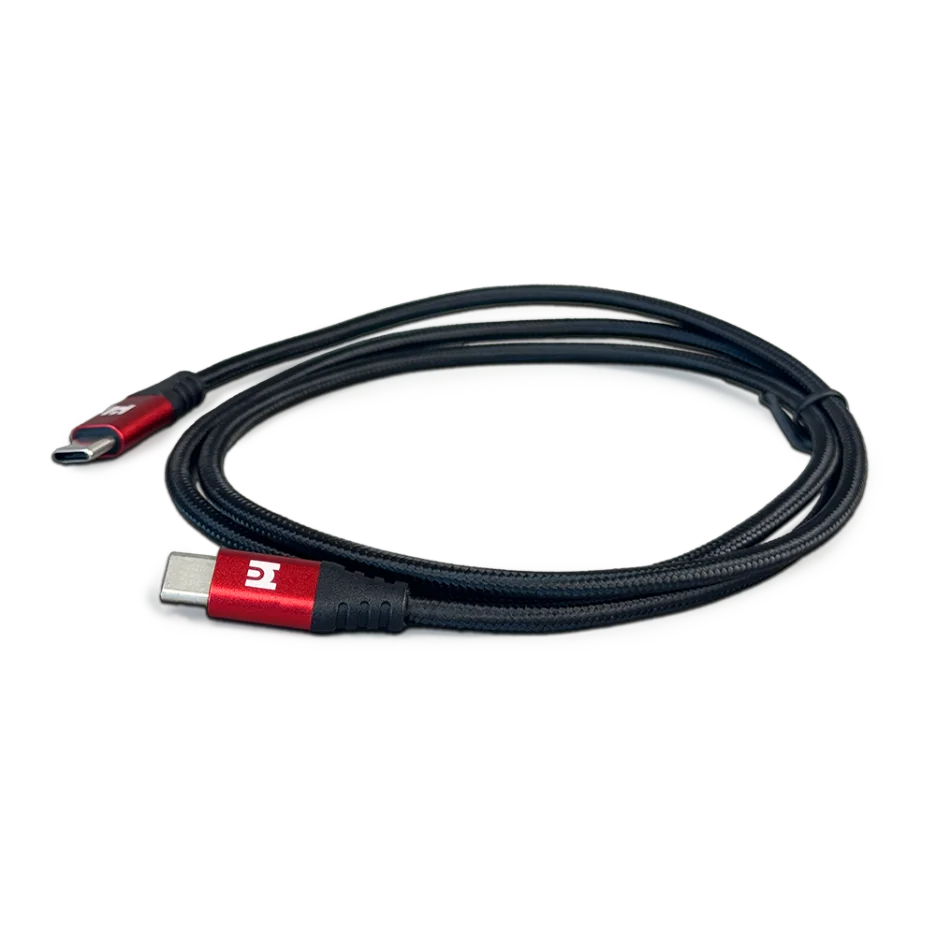

| Data Transfer | USB-C 2.0 |
| PC based Setup | User-configurable with UM Setup software |
| Language Support | 22 user-selectable languages:, English, Spanish, French, German, Italian, Polish, Dutch, Portuguese, Russian, Swedish, Danish, Estonian, Norwegian, Latvian, Lithuanian, Czech, Finnish, Greek, Hungarian, Romanian, Chinese, Korean |
