Mag X PRO Receiver
Drill with Ease
The Mag X Pro is our most powerful HDD Locating System to date. Paired with the New Echo 75XF and even the toughest jobs will be done with ease.
Core Features
- New Solid Core 3D Antenna Cluster
- Extended Range for the Sub-kHz Frequencies

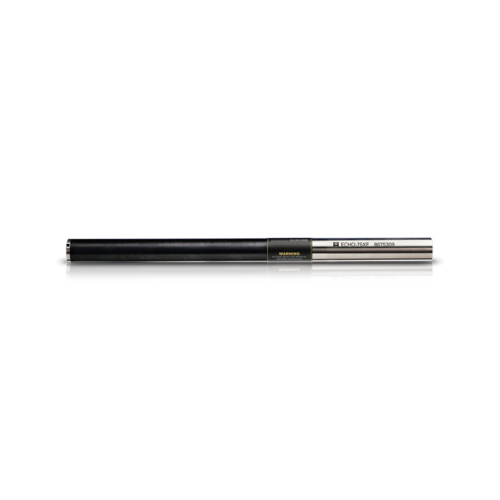

- Echo 75 XF 19″ Transmitter
3 Power Levels- Low: 114 Feet / 100 Hours
- Medium: 180 Feet / 60 Hours
- High: 278 Feet / 11 Hours
- Built-in Data Logging
- Simplified one-touch logging integrated into the remote drill display
- Rodwise and chart views with the ability to edit and add utility crossings
- Easily emailed directly from the display and synced to the UMmaps web portal
Starting at
$12,000
Specifications
| Weight | 8.5 lbs |
|---|---|
| Dimensions | 29 × 9 × 13 in |
| Antenna | Solid Core 3D Antenna Cluster |

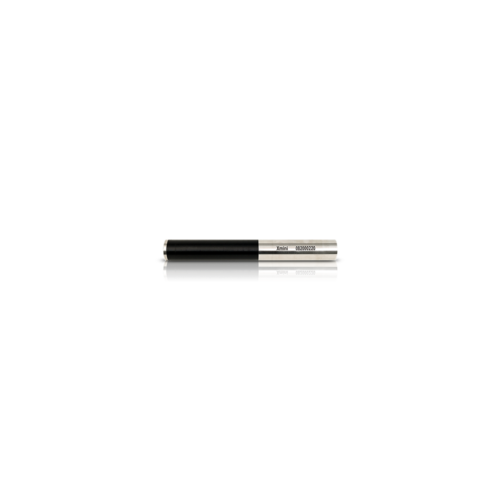

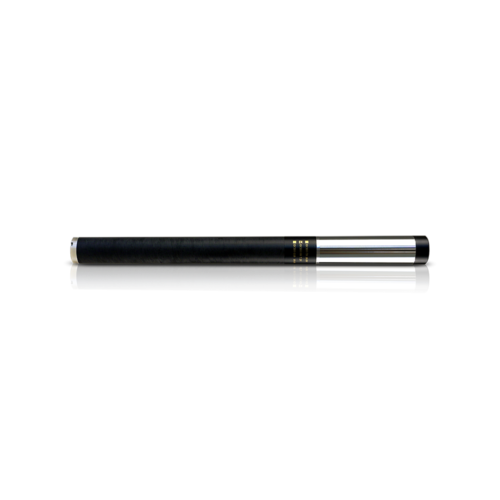

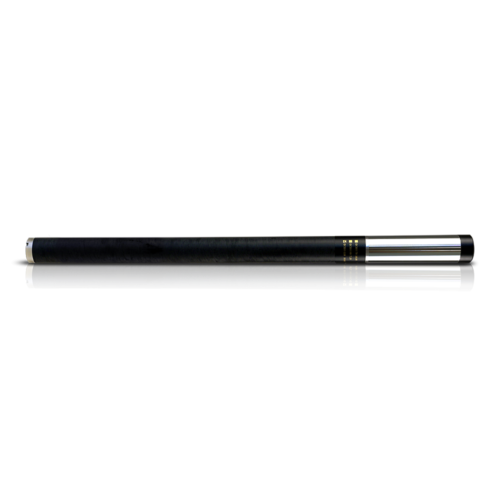

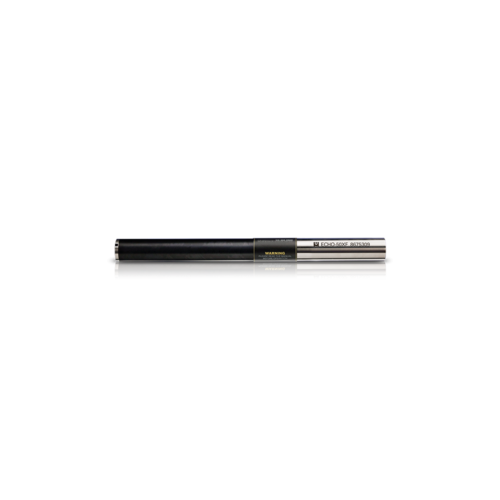

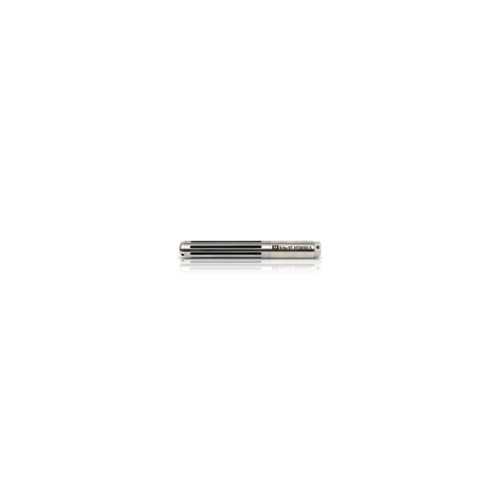

| Compatible Transmitter | Echo 110, Echo 50, Echo 50XF, Echo 70, Echo 90, Echo X-Mini, Echo 60, Echo 75XF, Echo ST |
| System Frequency | 16 Frequencies, .325kHz – 41kHz |
| Temperature Range | -4°F to 140°F (-20°C to 60°C) |
| Radio Frequency | 915 MHz |
| Telemetry | 4 Radio Channels with range up to 3,000 ft (900m) |
| Power | Rechargable Lithium Battery 12.5V |
| Battery Life | 50 hours |
| Waterproof | IP65 |

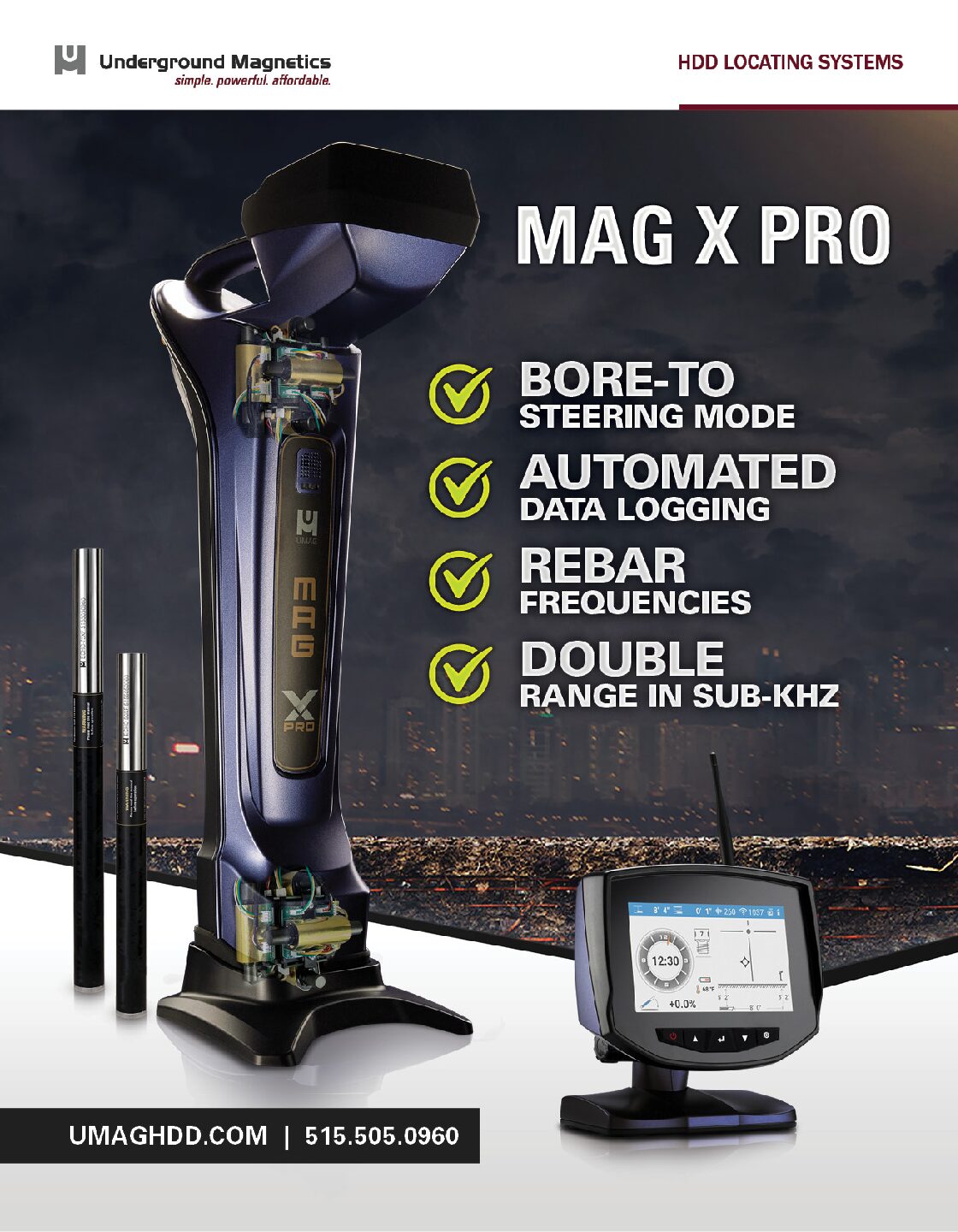

Spec Sheet
Manual
