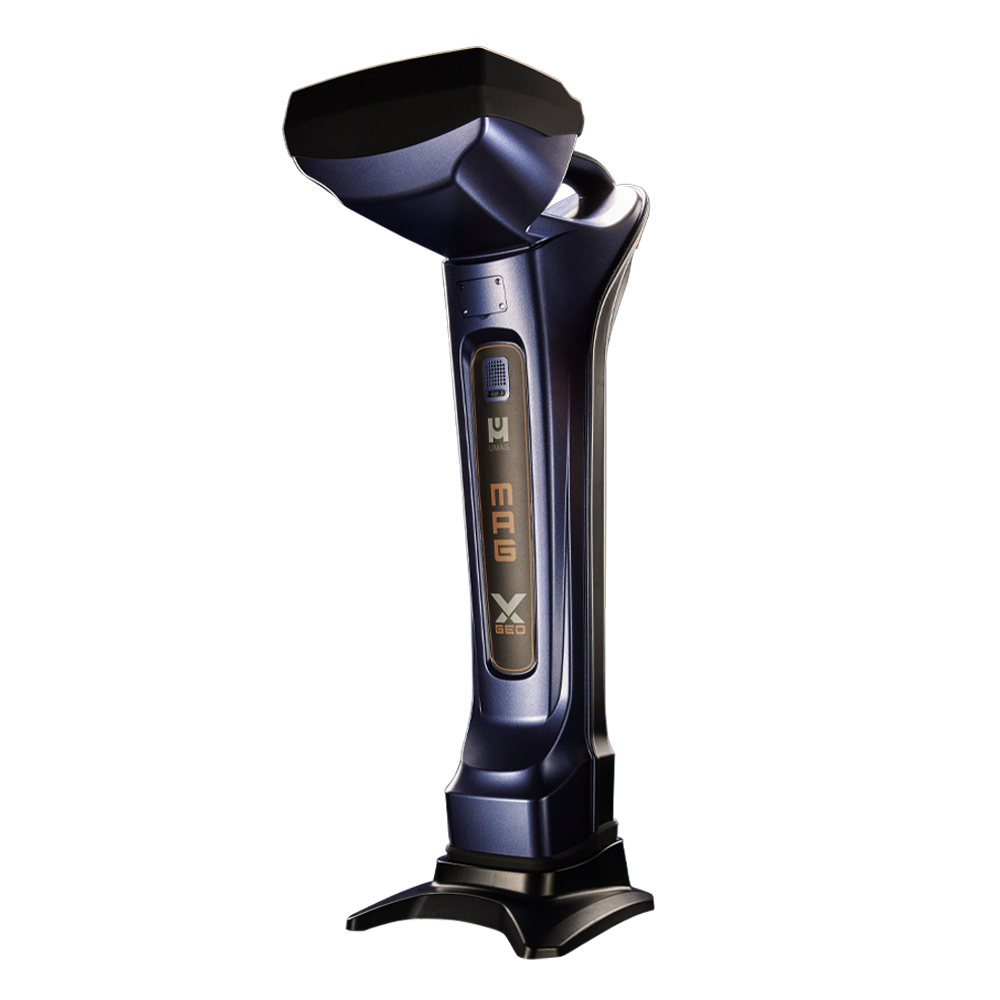

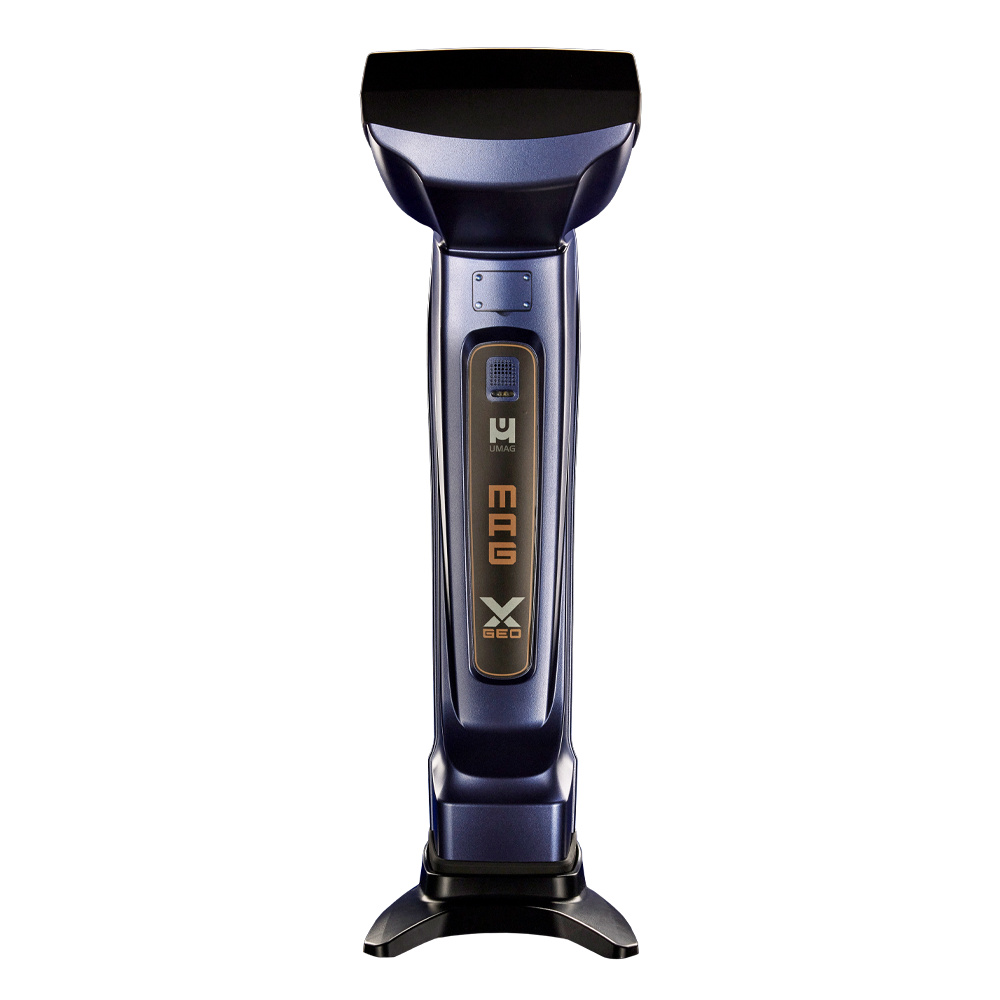

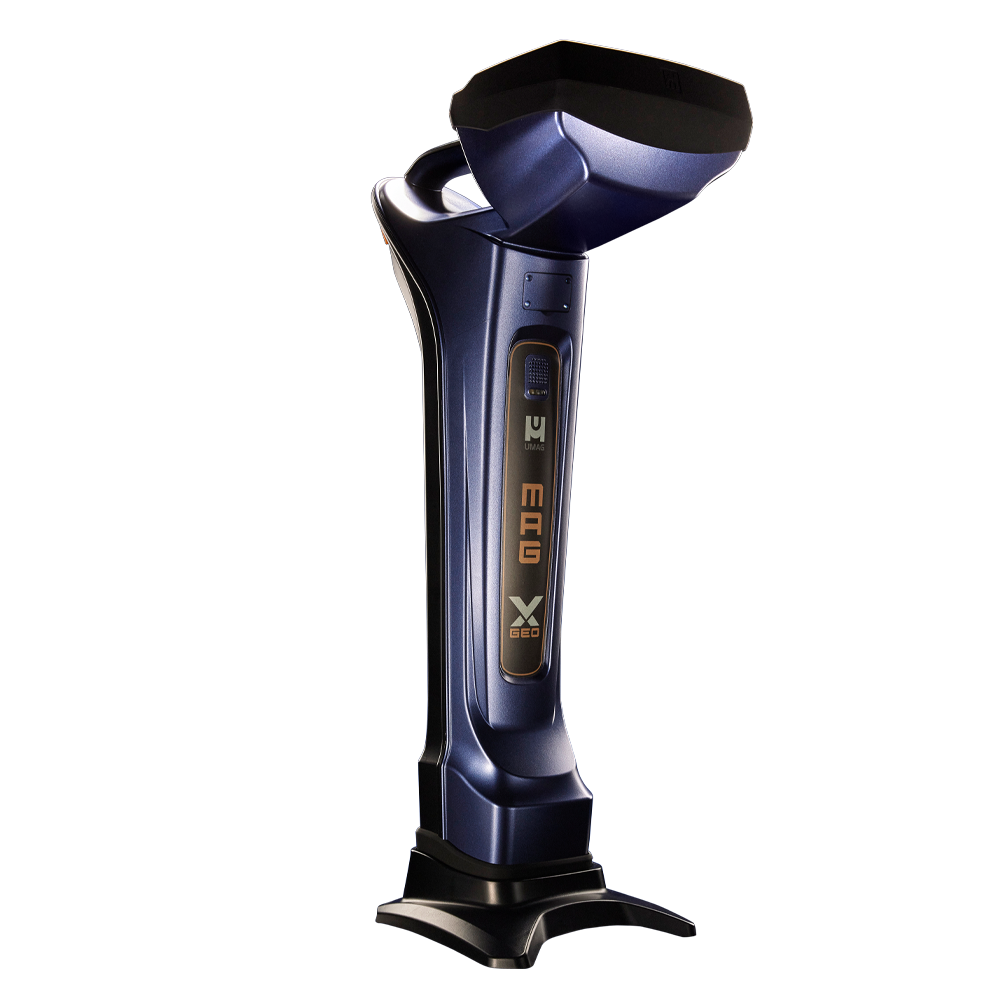

Mag X GEO System
Bore Smarter, Not Harder.

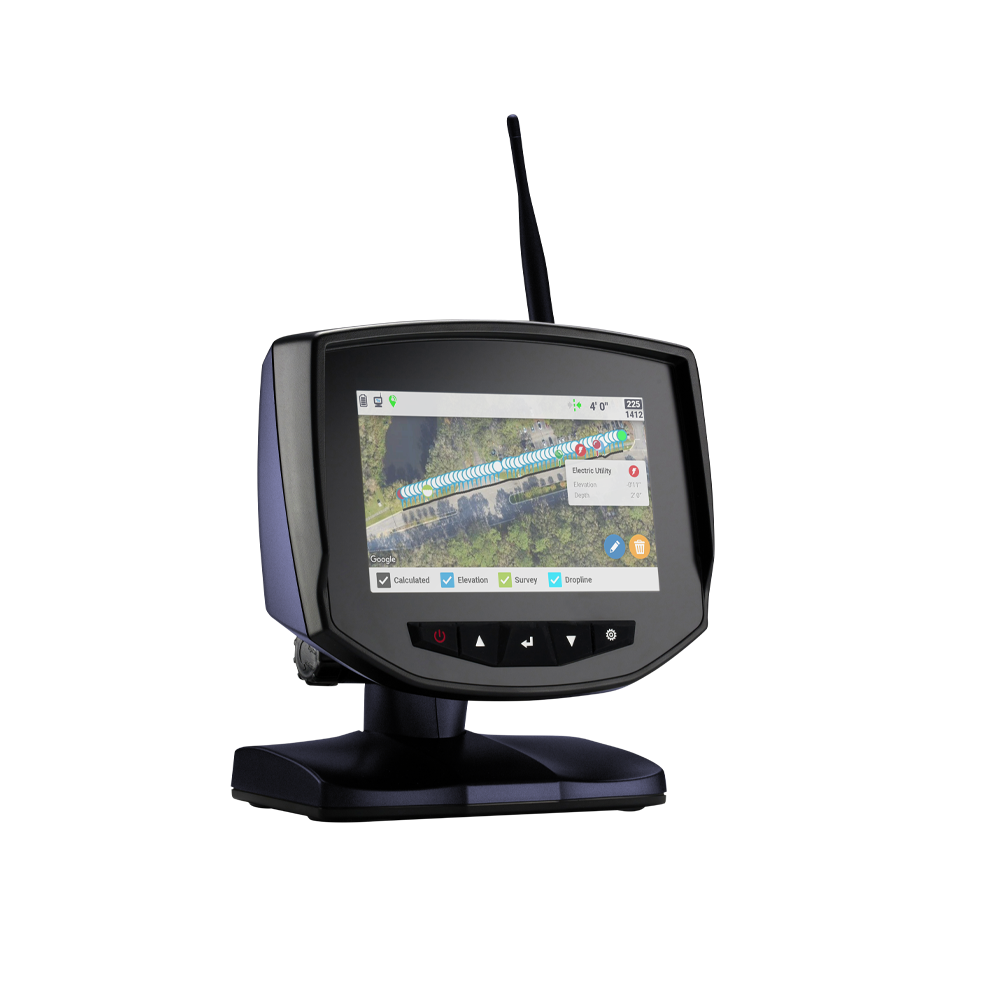

The Mag X Geo builds on our trusted platform with a 7-inch color touchscreen that delivers clear, at-a-glance data. Tactile, multi-function buttons provide intuitive access to key features through fly-up menus.
Log each rod’s pitch, depth, and GPS data while marking utilities as you expose them.
View progress in real time with Chart, Map, and Rod Table views to stay on target and reduce post-job cleanup.
Guide every move with tools like Dropline and Pitch Guide for GPS-directed path and depth control, or engage Bore-To for projected depth and target alignment.
Boost accuracy and efficiency with one easy-to-use locating system built for real jobsite demands.
Precision GPS Data Logging
» RTK-Enabled GPS with 1–3 cm Accuracy
» GPS Tracking including Elevation
» Automatically Record Rod-by-Rod Metrics
On-the-Fly Functionality
» Views: Overhead Aerial, Side Profile Chart, Rod Table
» Tools: Bore-To Steering, GPS Dropline, Pitch Guide
» Logging: Rod Pitch, Roll, Temp, Depth, and GPS Data
Reporting Redefined
» Add Utility Crossings with Type, GPS, and Depth
» Generate, Share, and Sync Reports from Receiver
» Real-time Project Monitoring
Starting at
$0




Specifications
Weight | 10.5 lbs |
---|---|
Dimensions | 29 × 9 × 14 in |
Antenna | Solid Core 3D Antenna Cluster |
Compatible Transmitter | Echo 110, Echo 50, Echo 50XF, Echo 70, Echo 90, Echo X-Mini, Echo 60, Echo 75XF, Echo ST |
System Frequency | 16 Frequencies, .325kHz – 41kHz |
Temperature Range | -4°F to 140°F (-20°C to 60°C) |
Radio Frequency | 915 MHz (US) / 433MHz (EU) / 867 MHz (IN) |
Telemetry | 4 Radio Channels with range up to 3,000 ft (900m) |
Power | Rechargable Lithium Battery 12.5V |
Battery Life | 50 hours |
Waterproof | IP65 |
GPS | Integrated GPS + RTK |
Data Logging | Built-in Data Logging |
Communication | 4-Channel RF: up to 3,000 ft. /900m Range |
Accuracy | ±5% |
