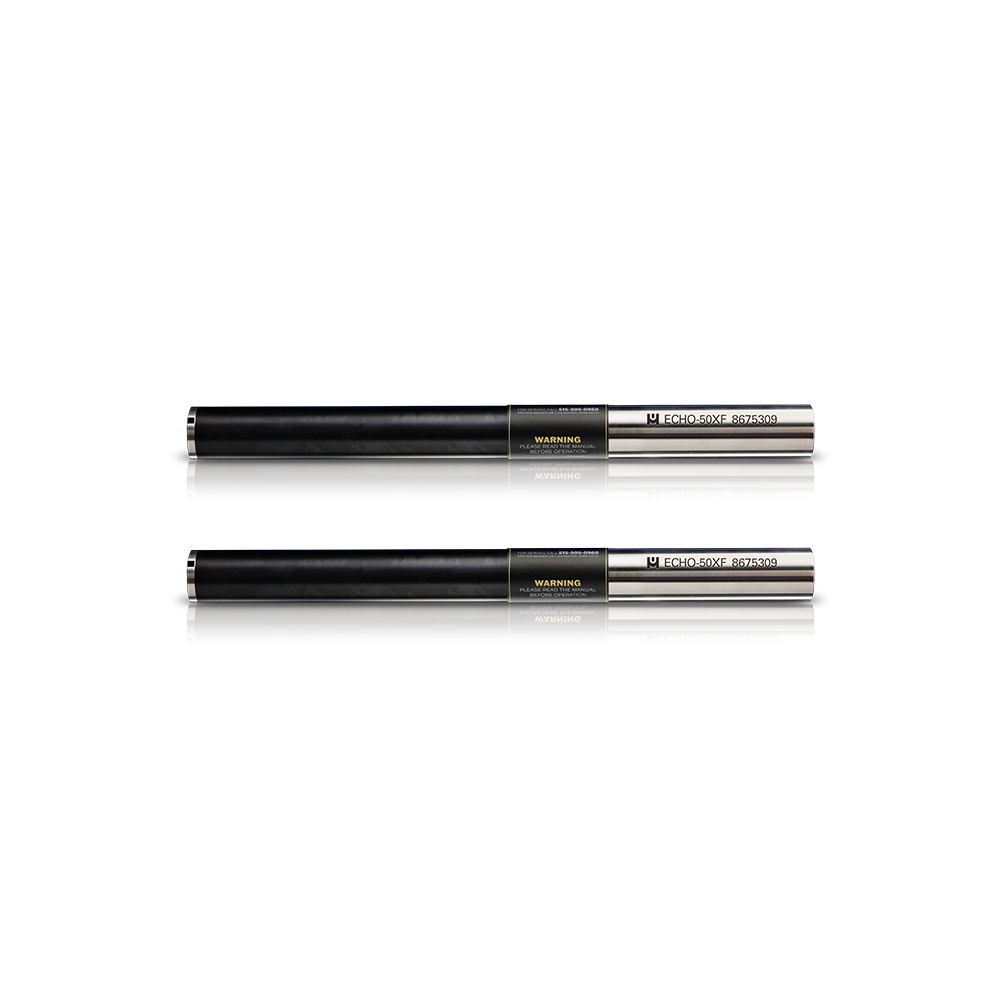

Echo 50XF Transmitter
The Echo 50XF is a standard-size transmitter with two power levels and 16 frequencies. This is your go-to transmitter to cover 90% of all jobs out there. From heavy rebar and wire mesh in concrete. To river and highway crossing requiring extra power for bore-to and extreme depths. This transmitter will outperform any 15″ long transmitter out there. (15″ long x 1.25″ dia)
Starting at
$3,800
Specifications
| Dimensions | 15 × 1.25 in |
|---|---|
| System Frequency | 16 Frequencies, .325kHz – 41kHz |
| Battery Type | 21700 x 1 Rechargeable Lithium Battery, 261020 x 1 Lithium Battery (Super Cell) |
| Battery Life | 21700 (4.2v): 12 Hours – High Power Mode, 21700 (4.2v): 50 Hours Normal Mode, 261020 (3.7v): 15 Hours – High Power Mode, 261020 (3.7v): 60 Hours – Normal Mode |
| Depth & Data Range | 131 ft (40m) – Normal Mode, 164 ft (50m) – High Power Mode |
