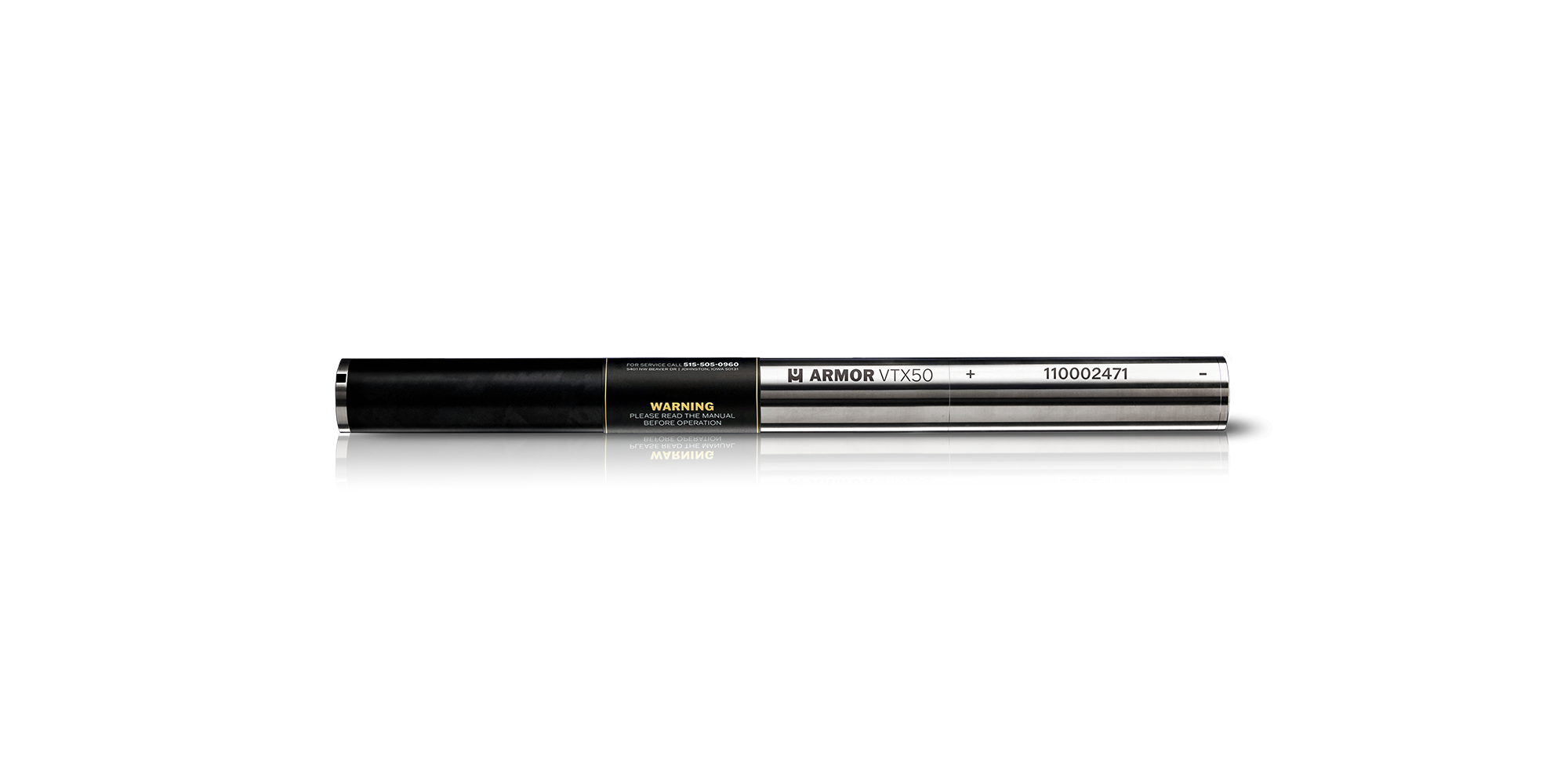

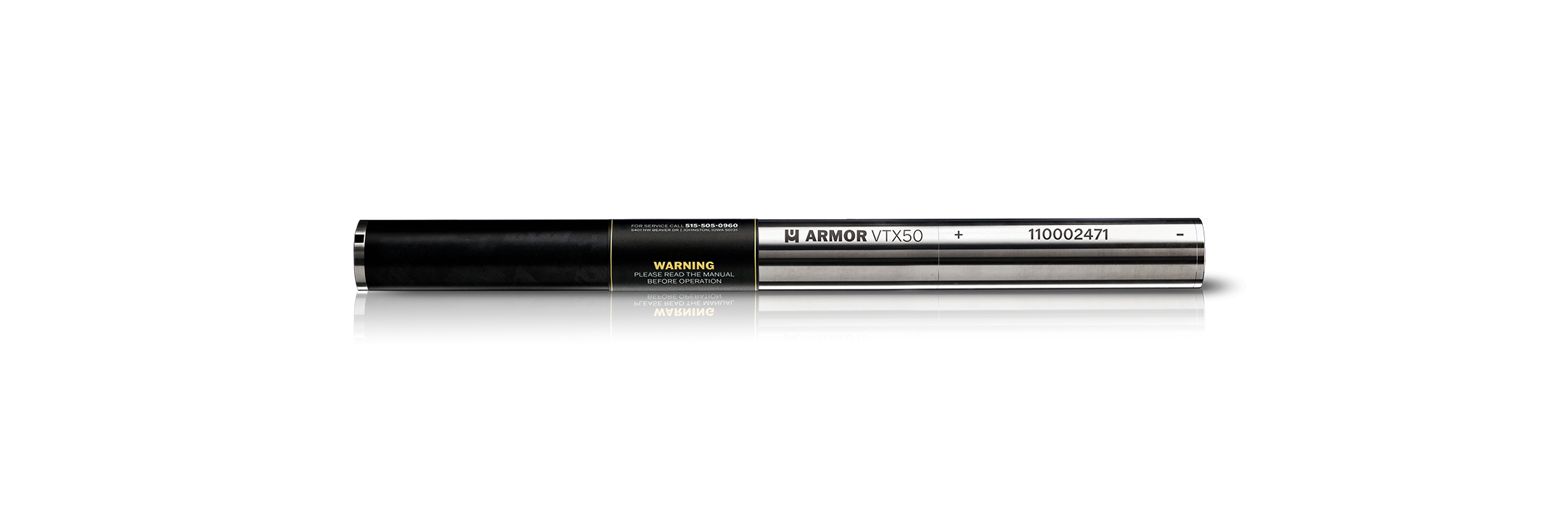

Armor VTX50 HDD Transmitter Sonde Beacon | 15 Inch | 164 ft Range

Armor VTX50 Transmitter

Name: Armor VTX50 Transmitter
SKU: 2000428
Availability: InStock

The Armor VTX50 is a compact, versatile transmitter built for everyday locating and shallow to mid depth HDD applications. With 16 selectable frequencies from 325 kHz to 41 kHz, it delivers excellent signal clarity in congested underground environments while maintaining efficient power usage.

Designed for flexibility, the VTX50 supports both rechargeable 21700 lithium batteries and primary 261020 lithium cells, giving operators options for extended runtime or quick field swaps. In low power mode, the VTX50 can run for up to 300 hours, making it ideal for long jobs where uptime matters.

Built in a standard 15 inch transmitter size, the VTX50 produces exceptional signal strength for its class, reaching depths of up to 164 feet (50 m) in high power mode with dependable performance across all operating conditions.

Starting at

$4,000

Request a Quote

Schedule a Demo

Specifications

Dimensions	15 × 1.25 in
System Frequency	16 Frequencies, .325kHz – 41kHz, Daily Use, Rebar, Passive & Active Interference
Battery Type	21700 x 1 Rechargeable Lithium Battery 261020 x 1 Lithium Battery (Primary)
Battery Life	21700 Rechargeable (4.2v): 100 hours – Low Power Mode 18 hours – Medium Power Mode 7 hours – High Power Mode 261020 Primary (3.7v): 300 hours – Low Power Mode 50 hours – Medium Power Mode 20 hours – High Power Mode
Depth & Data Range	82 feet. (25m) – Low Power Mode 115 feet (35m) – Medium Power Mode 164 feet (50m) – High Power Mode
