Nexus Pro Utility Locating System
Introducing the Nexus Pro Utility Locating System, an advanced utility locating system for horizontal directional drilling (HDD) contractors. Built to tackle the unique challenges of HDD projects, this locator offers highly accurate verification and detection of underground utilities, minimizing risk and ensuring safe, efficient drilling operations.
Whether navigating through dense urban infrastructure or rural environments, the Nexus Pro ensures that HDD contractors can drill with confidence, avoiding costly damage and maintaining project timelines.
- Two Quick-Swappable Batteries
» Charge your spare battery while you locate - Ergonomic 3D Soft Touch Keypad
» Provide intuitive feedback with each button press - Comfortable Balanced Receiver
» Reduce fatigue with balanced ergonomic design - Break-Away Leads
» Reduce accidental damage to transmitter leads - Dual Output Ports
» Connect any two accessories
» Select the active accessory with a single button
Simplicity
Meets
Versatility
- Multi-Platform Versatility
» Showcasing 30 different feature sets - Directional Arrow Guidance
» Provide intuitive feedback with each button press - Enhanced Performance
» Reduce fatigue with balanced ergonomic design

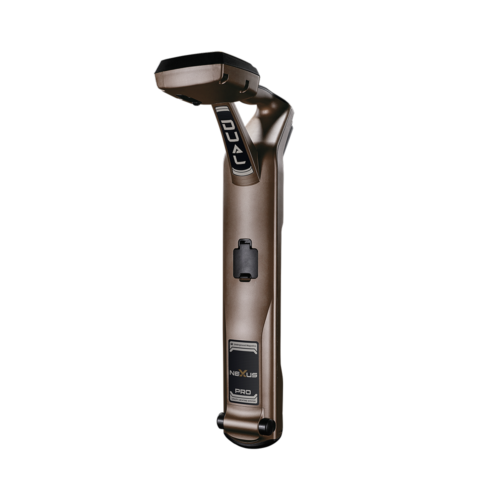

Nexus Pro Dual Receiver
| Weight | 4.8 lbs |
|---|---|
| Dimensions | 26.7 × 5.8 × 12.7 in |
| Operating Temperature | -4°F to 122°F (-20° to 50°C) |
| Storage Temperature | -40°F to 160°F (-40° to 70°C) |
| Waterproof | IP65 |
| Battery Type | 6x AA (LR6) with Alkaline battery pack, Lithium ion battery pack, 35.5Wh |
| Battery Life | Alkaline: 5 hours continuous (10 intermittent), Lithium: 15 hours continuous (30 intermittent) |
| Charge Time | 2 hours |
| Frequency Range | 50Hz – 200kHz |
| Max Automatic Depth | 19.7 ft (6m) |
| Max Pushbutton Depth | 36 ft (11m) |
| Accuracy (Locate) | +/- 5% of depth |
| Accuracy (Depth) | Line: +/- 5% to 9.8ft (3m), Sonde: +/- 5% to 9.8ft (3m), Passive: +/- 10% to 9.8ft (3m) |
| Sensitivity | 1×10⁻¹⁵ Tesla (1uA @ 1m, 32.8kHz) |
| Automatic overload protection | Up to 60dB |
| Locate Modes | Single, Twin, Null, Sweep (Omnidirectional), Twin Sweep (Omnidirectional) |
| Gain Control | Manual with One Touch |
| Active Locate Frequencies | Standard Frequencies: 256Hz, 263Hz, 440Hz, 512Hz, 560Hz, 577Hz, 640Hz, 815Hz, 870Hz, 940Hz, 1.02kHz, 1.17kHz, 3.14kHz, 4.1kHz, 8.01kHz, 8.19kHz, 9.82kHz, 12.1kHz, 16.3kHz, 22.5kHz, 29.4kHz, 32.8kHz, 44.5kHz, 66.1kHz, 88.8kHz, 99kHz, 132kHz, 200kHz |
| Custom Frequencies | Available by request |
| Sonde Frequencies | 4 Frequencies: 512Hz, 640Hz, 8.19kHz, 32.8kHz |
| Passive Frequencies | Power |
| Locate Direction | Automatically detected, Any frequency up to 10kHz |
| Frequency Analyzer | Scans the area for noise in all directions. Recommends the best frequencies |
| Data Logging | 4Gb internal storage, over 16 million records |
| BLE 5.1 | BLE 5.1 |
| Accessories | Ring Clamp |

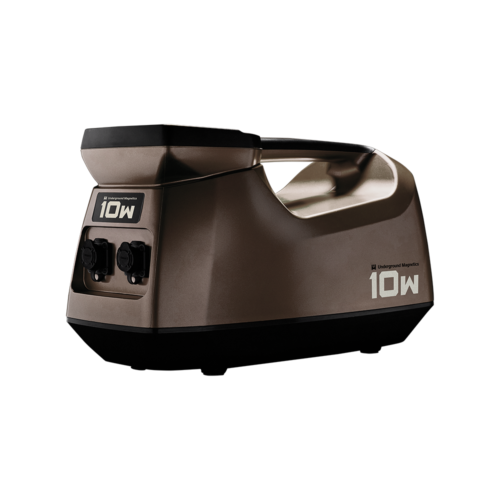

Nexus 10w Transmitter
| Weight | 7.9 lbs |
|---|---|
| Dimensions | 8.3 × 7.6 × 15 in |
| Operating Temperature | -4°F to 122°F (-20° to 50°C) |
| Storage Temperature | -40°F to 160°F (-40° to 70°C) |
| Waterproof | IP65 |
| Battery Type | Lithium ion battery pack, 94.7Wh | 8x D-Cell (LR20) with Alkaline Pack |
| Battery Life | Alkaline: 10 hours continuous (20 intermittent), Lithium: 17 hours continuous (34 intermittent) |
| Charge Time | 4 hours |
| Display | High Contrast Graphical LCD |
| Frequency Range | 256Hz – 200kHz |
| Max Power Output | 10w (1w above 45kHz) |
| Max Current Output | 1000mA (500mA above 45kHz) |
| Max Voltage Output | 90Vrms |
| Output Power Levels | 4 levels + Standby |
| Active Locate Frequencies | Standard Frequencies: 256Hz, 263Hz, 440Hz, 512Hz, 560Hz, 577Hz, 640Hz, 815Hz, 870Hz, 940Hz, 1.02kHz, 1.17kHz, 3.14kHz, 4.1kHz, 8.01kHz, 8.19kHz, 9.82kHz, 12.1kHz, 16.3kHz, 22.5kHz, 29.4kHz, 32.8kHz, 44.5kHz, 66.1kHz, 88.8kHz, 99kHz, 132kHz, 200kHz |
| Custom Frequencies | Available by request |
| Induction Frequencies | 3.14kHz and above |
| Dual Output Ports | Connect any two accessories, Select the active accessory with Mode key |
| Locate Direction | User enabled, Any frequency under 10kHz |
| Accessories | Direct Connect Leads, Ring Clamp |
| Data Transfer | USB-C 2.0 |
| PC based Setup | User-configurable with UM Setup software |
| Language Support | 22 user-selectable languages:, English, Spanish, French, German, Italian, Polish, Dutch, Portuguese, Russian, Swedish, Danish, Estonian, Norwegian, Latvian, Lithuanian, Czech, Finnish, Greek, Hungarian, Romanian, Chinese, Korean |
