Mag X PRO System
Drill with Ease
The Mag X Pro is our most powerful HDD Locating System to date. Paired with the New Echo 75XF and even the toughest jobs will be done with ease.
Starting at$20,000
as low as
$611/month*
*Pending credit approval and/or down payment.
Locating System
Transmitter
Add on Utility Locating System

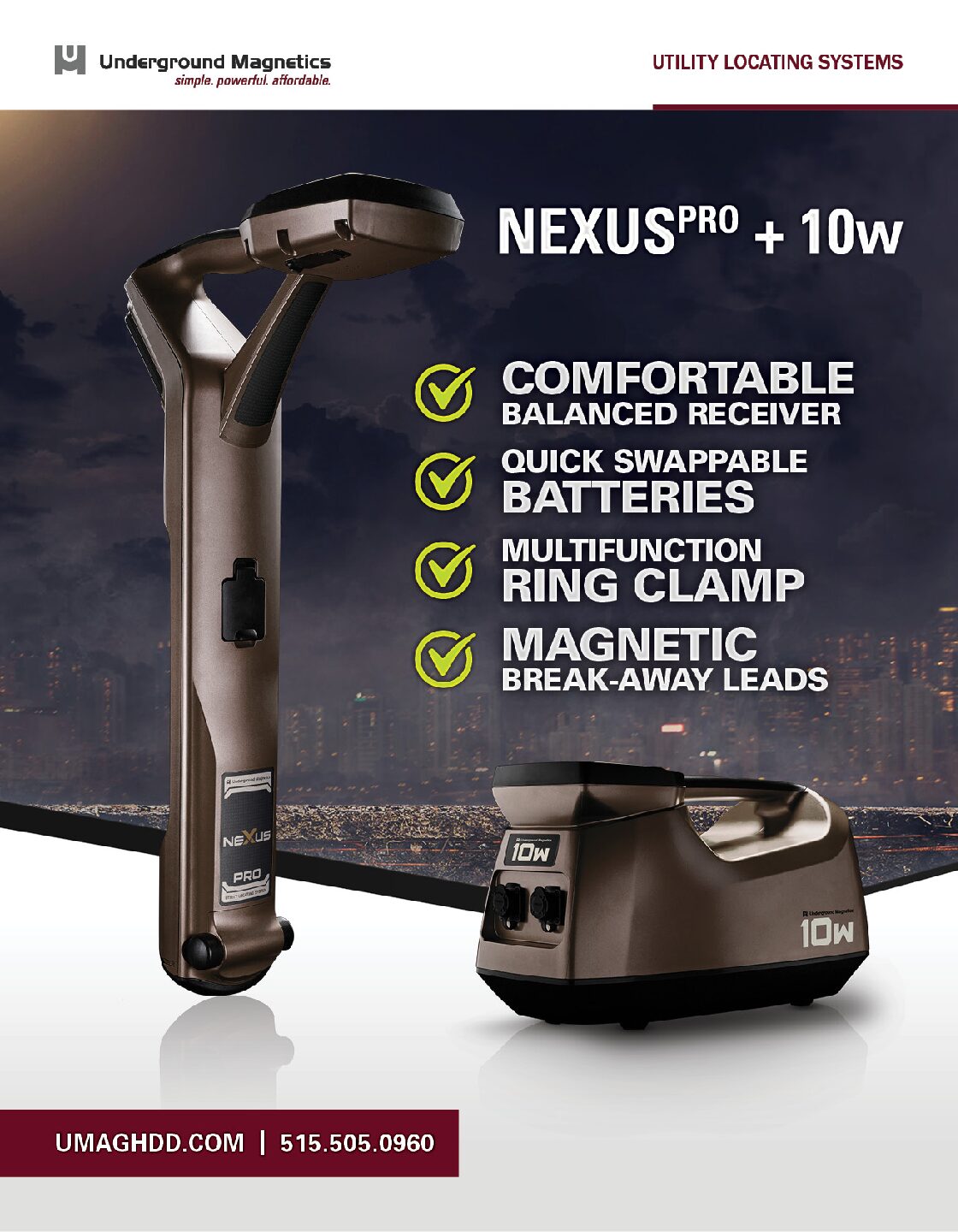

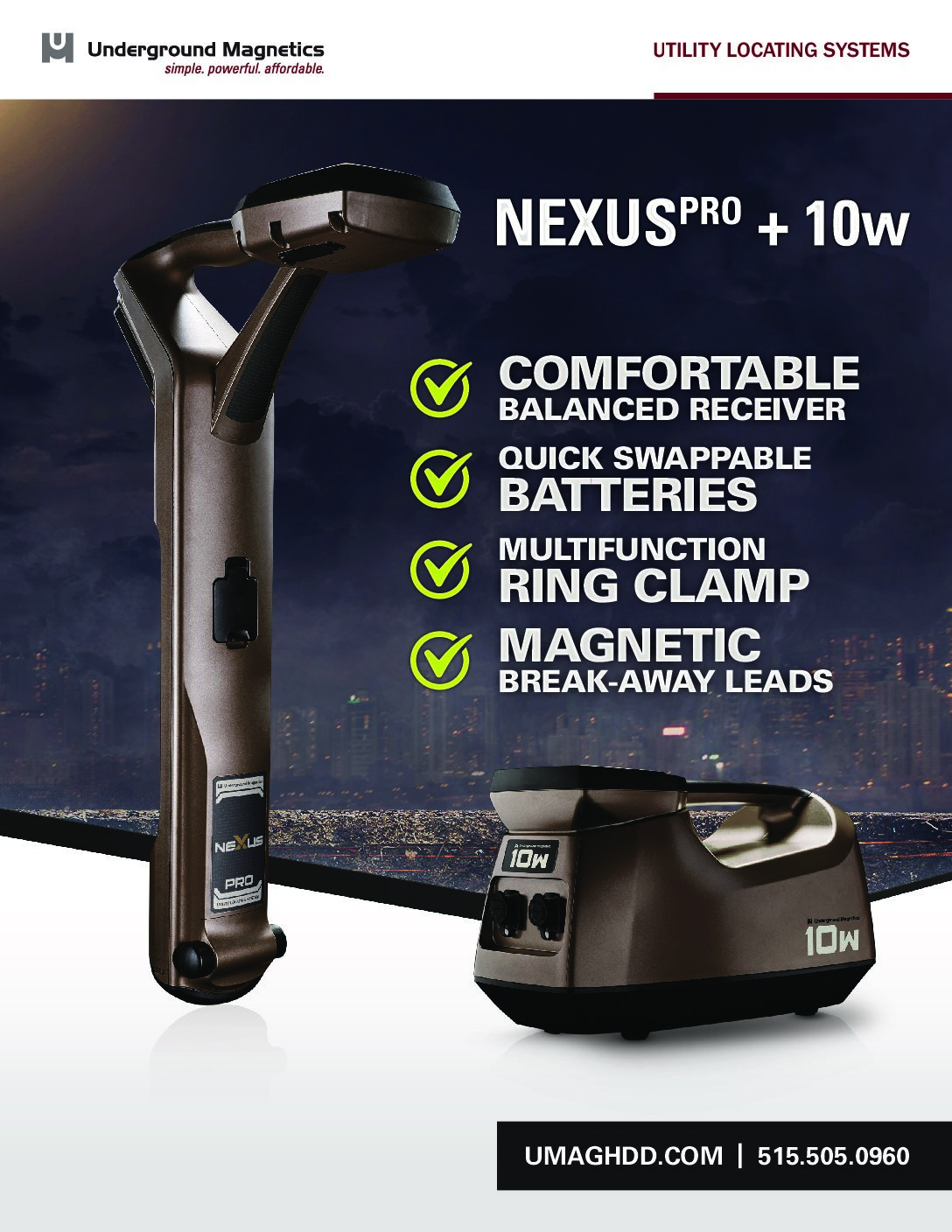

1 × Nexus Pro Utility Locating System
$6,750
Dual 3D Solid Core Antennas
» 2X Range for the Sub-kHz Frequencies
» Rebar Ready to Combat Passive Interference
» Bore-To Steering + Walkover Mode
Automated Data Logging
» Built-in Simplified One-Touch Logging
» Rodwise and Chart Views + Add/Edit Utility Crossings
» Email + Sync to UM Maps Reports from Display
Echo 75XF 19″ Transmitter
» Low Power: 114 Feet / 100 Hours
» Medium Power: 180 Feet / 60 Hours
» High Power: 278 Feet / 11 Hours
Specifications
| Weight | 8.5 lbs |
|---|---|
| Dimensions | 29 × 9 × 13 in |
| Antenna | Solid Core 3D Antenna Cluster |
| Transmitter | Echo 110, Echo 50, Echo 50XF, Echo 60, Echo 70, Echo 75XF, Echo 90, Echo ST, Echo X-Mini |
| System Frequency | 16 Frequencies, .325kHz – 41kHz |
| Temperature Range | -4°F to 140°F (-20°C to 60°C) |
| Radio Frequency | 915 MHz (US) / 433MHz (EU) / 867 MHz (IN) |
| Telemetry | 4 Radio Channels with range up to 3,000 ft (900m) |
| Power | Rechargable Lithium Battery 12.5V |
| Battery Life | 50 hours |
| Waterproof | IP65 |
Spec Sheet
Manual
Compatible Transmitters
-
Echo ST Transmitter
Part #: 2000107 $1,200 -
Echo X-Mini Transmitter
Part #: 2000900 $1,500 -
Echo 50XF Transmitter
Part #: 2000202XF $4,000 -
Echo 75XF Transmitter
Part #: 2000321 $5,000 -
Echo 70 Transmitter
Part #: 2000204 $5,500 -
Echo 90 Transmitter
Part #: 2000205 $6,000 -
Echo 110 Transmitter
Part #: 2000206 $7,000
